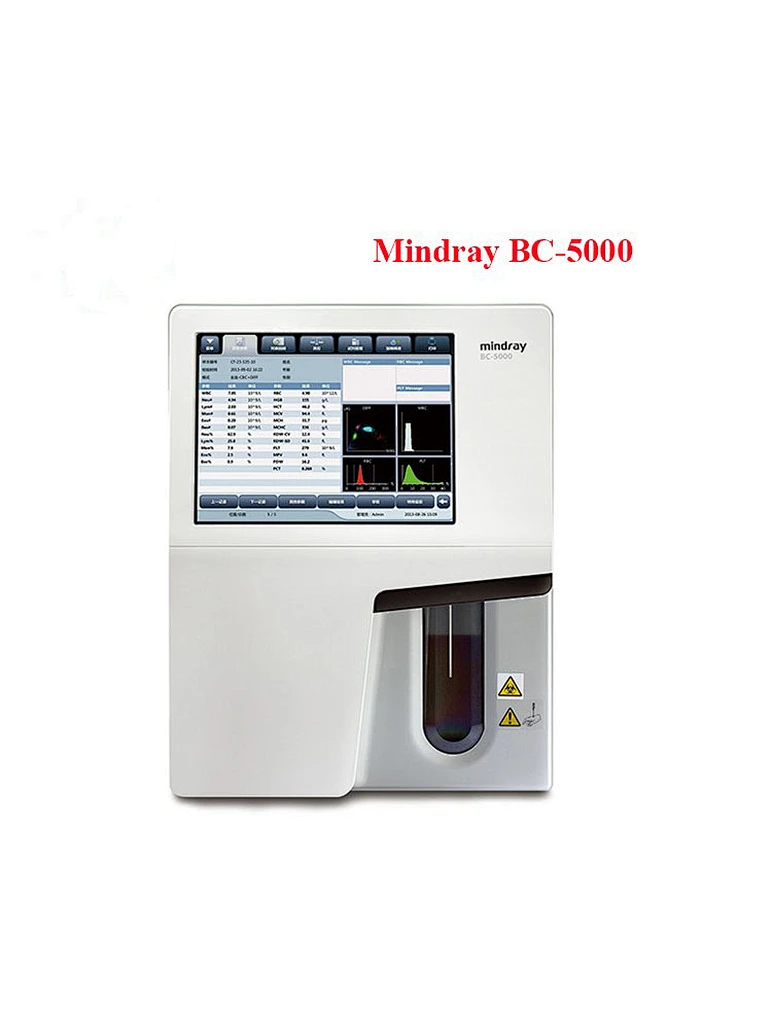

Brand new Mindray BC5000 fully automated hematology analyzer/Full Blood Count and auto blood analyzer Differential 5 part
BC5000
Quantity
Brand new Mindray BC5000 fully automated hematology analyzer/Full Blood Count and auto blood analyzer Differential 5 part BC5000
BC5000
BC5000
BC5000
BC5000
BC5000

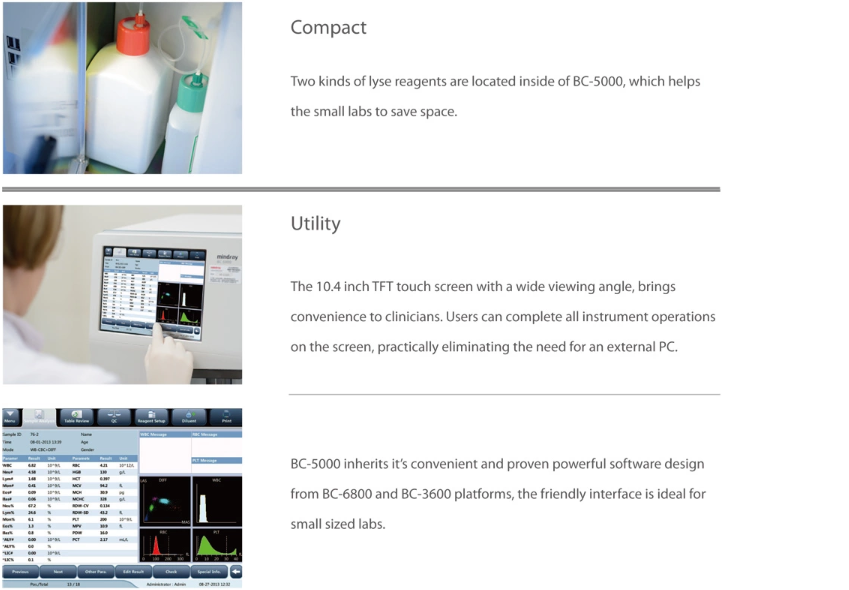

Advantages
Compact
Two kinds of lyse reagents are located inside of BC-5000, which helps
the small labs to save space.
BC5000
Utility
The 10.4 inch TFT touch screen with a wide viewing angle, brings convenience to clinicians. Users can complete all instrument operations on the screen, practically eliminating the need for an external PC. BC-5000 inherits it's convenient and proven powerful software design from BC-6800 and BC-3600 platforms, the friendly interface is ideal for small sized labs.

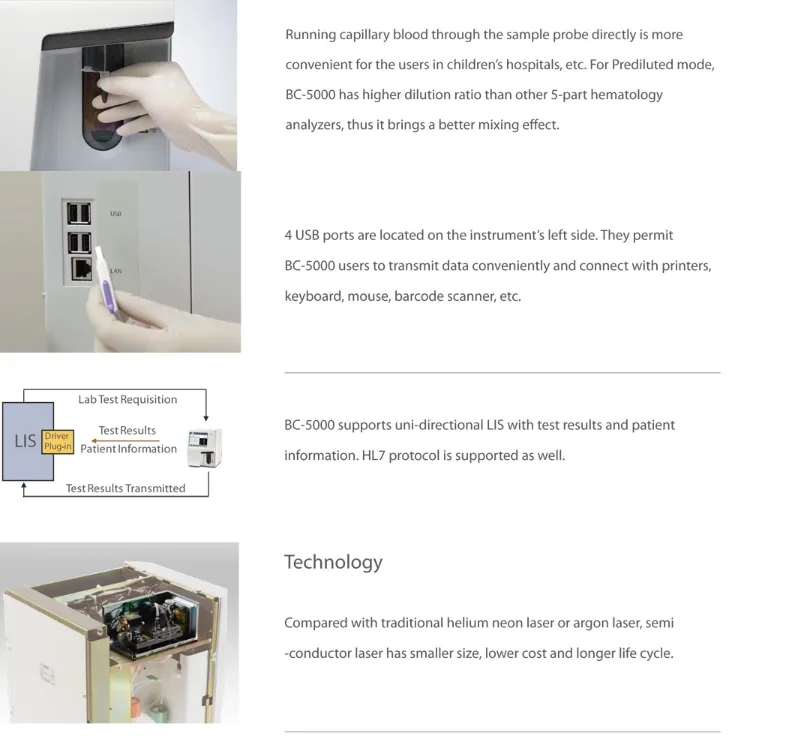

Running capillary blood through the sample probe directly is more convenient for the users in children's hospitals, etc. For Prediluted mode, BC-5000 has higher dilution ratio than other 5-part hematology analyzers, thus it brings a better mixing elect.BC-5000 supports bi-directional LIS with test results and patient information. HL7 protocol is supported as well.
LIS Driver Plug-in Test Results Patient Information LabTest Requisition TestResults Transmitted Improved DC impedance technology is used to count and size the RBC and PLT.
The smaller counting aperture (50 μm in diameter) provides better performance on samples with low PLT. 4 USB ports are located on the instrument's left side. They permit BC-5000 users to transmit data conveniently and connect with printers,keyboard, mouse, barcode scanner, etc.
BC5000
Technology

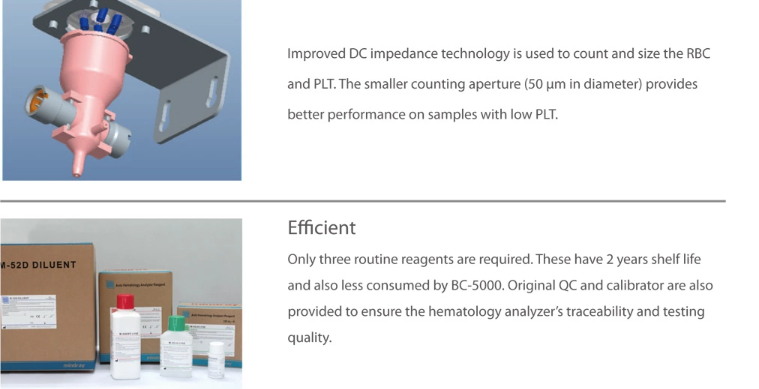

Compared with traditional helium neon laser or argon laser, semi-conductor laser has smaller size, lower cost and longer life cycle.Improved DC impedance technology is used to count and size the RBC and PLT.
The smaller counting aperture (50 μm in diameter) providesbetter performance on samples with low PLT.
BC5000
Efcient
Only three routine reagents are required. These have 2 years shelf life and also less consumed by BC-5000. Original QC and calibrator are also provided to ensure the hematology analyzer's traceability and testing quality.
BC5000
Specification
BC5000
BC5000
BC5000
BC5000
BC5000
Advantages
Compact
Two kinds of lyse reagents are located inside of BC-5000, which helps
the small labs to save space.
BC5000
Utility
The 10.4 inch TFT touch screen with a wide viewing angle, brings convenience to clinicians. Users can complete all instrument operations on the screen, practically eliminating the need for an external PC. BC-5000 inherits it's convenient and proven powerful software design from BC-6800 and BC-3600 platforms, the friendly interface is ideal for small sized labs.
Running capillary blood through the sample probe directly is more convenient for the users in children's hospitals, etc. For Prediluted mode, BC-5000 has higher dilution ratio than other 5-part hematology analyzers, thus it brings a better mixing elect.BC-5000 supports bi-directional LIS with test results and patient information. HL7 protocol is supported as well.
LIS Driver Plug-in Test Results Patient Information LabTest Requisition TestResults Transmitted Improved DC impedance technology is used to count and size the RBC and PLT.
The smaller counting aperture (50 μm in diameter) provides better performance on samples with low PLT. 4 USB ports are located on the instrument's left side. They permit BC-5000 users to transmit data conveniently and connect with printers,keyboard, mouse, barcode scanner, etc.
BC5000
Technology
Compared with traditional helium neon laser or argon laser, semi-conductor laser has smaller size, lower cost and longer life cycle.Improved DC impedance technology is used to count and size the RBC and PLT.
The smaller counting aperture (50 μm in diameter) providesbetter performance on samples with low PLT.
BC5000
Efcient
Only three routine reagents are required. These have 2 years shelf life and also less consumed by BC-5000. Original QC and calibrator are also provided to ensure the hematology analyzer's traceability and testing quality.
BC5000
Specification
| Reagent | M-52D Diluent, M-52DIFF Lyse, M-52LH Lyse, Probe Cleanser | |
| Performance | ||
| Parameter Linearity Range Precision Carryover WBC 0-100×109/L ≤2% (4-15×109/L) ≤0.5% RBC 0-8×10¹²/L ≤1.5% (3.5-6.0×10¹²/L) ≤0.5% HGB 0-250g/L ≤1.5% (110-180g/L) ≤0.6% PLT 0-1000×109/L ≤4.0% (100-500×109/L) ≤1.0%2 | ||
| Parameters | 23 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-CV, RDW-SD, PLT, MPV, PDW, PCT 3 histograms for WBC, RBC and PLT 3 scattergrams for WBC differential | |
| Sample Volume | Prediluted mode :20 μL Whole blood mode :15 μL Capillary whole blood mode:15μL | |
| Throughput | 40 samples per hour | |
| Display | 10.4 inch TFT Touch Screen | |
| Multi-language | Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia | |
| Data Storage Capacity | Up to 20,000 results including numeric and graphical information | |
| Communication | LAN port supports HL7 protocol | |
| Interface | USB, LAN Support bi-directional LIS | |
| Printout | External Thermal printer / Laser printer / Inkjet printer, various | |
| Operating Environment | Temperature: 10°C~30°C Humidity: 20%~85% Air pressure:70 kPa~106 kPa | |
