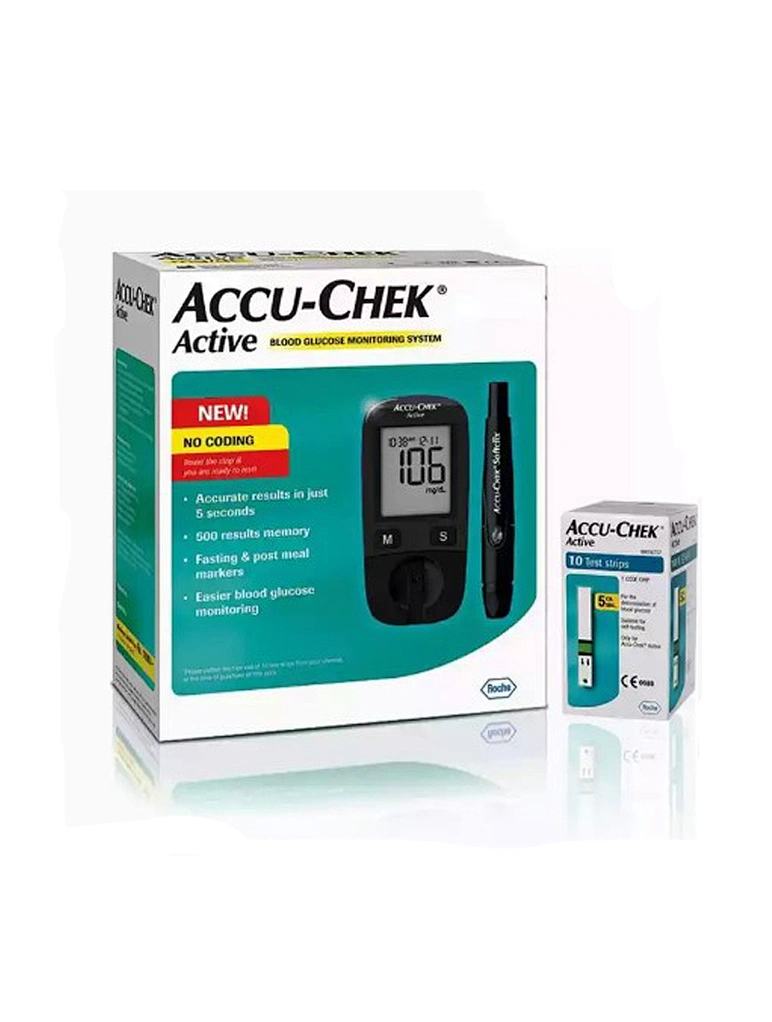

Accu Chek Active Glucometer/blood glucose meter for sale.
Accu chek blucometer

Item Description

The Accu-Chek Active blood glucose meter packs many powerful features into a smaller size. No coding reduces handling steps,  see test result averages up to 90 days, get alerts if your test strips are expired or if you’ve underdosed, re-dose within 10 seconds, set pre-and post-meal reminders to test, and more.
 Accu chek blucometer


Benefits and Features
Accu chek blucometer
accurate:

• Accurate1 blood glucose measurement

easy:

• No coding for even easier blood glucose monitoring
• easy-to-read display  (new typeface)
• intuitive handling with just 2 buttons

 safe:

• Underdose detection
• visual double check
• 10 seconds re-dose option

 clever:

• Pre- and postmeal markers
• postprandial reminder
• 7,14,30 or now 90 day test averages
• USB interface for data transfer


1The Accu-Chek Active bGM system meets the DIN EN ISO 15197:2013 requirements (data on file, 2014).
Accu chek blucometer
Additional specifications
Meter type :

Accu-Chek Active meter (Model GB)

Catalogue no. / Serial no. :

See type plate on the back of the meter

Test principle :

Determination of glucose in fresh capillary blood by reflectance photometry.
Accu chek blucometer
Blood glucose values can be tested in whole blood or plasma.
The meter displays blood glucose values corresponding to those in plasma.

Measuring interval :

10-600 mg/dL

Blood volume :

1-2 μl

Measuring time :

Test strip in the meter: approx. 5 seconds
Test strip outside the meter: approx. 08 seconds
Accu chek blucometer

Power supply :

1 battery (type CR2032)
Accu chek blucometer

Battery life :

approx. 1000 tests or approx. 1 year

Automatic power-off :

after 30 or 90 seconds depending on operating status

Memory :

500 test results with time and date, as well as 7, 14, 30 and 90 days averages

Temperature :

During testing: +8 to +42°C
During storage without battery: -25 to +70°C
During storage with battery: -20 to +50°C

Atmospheric humidity :

During testing: up to 85% relative humidity
During testing: up to 93% relative humidity

Altitude:

Sea level to 4000 m

Dimensions :

97.8 x 46.8 x 19.1 mm

Weight :

Without battery: approx. 46 g
With battery: approx. 50 g

Display :

96-segment liquid crystal display (LCD)

Interface :

USB (Micro B)

Safety class :

III

Electromagnetic compatibility :

The Accu-Chek Active meter meets the electromagnetic immunity requirements and the electromagnetic emissions requirements as per EN 61326-2-6 and EN ISO 15197 Annex A.
The chosen basis for electrostatic discharge immunity testing was basic standard IEC 61000-4-2.
Accu chek blucometer

Performance analysis :

Calibration and traceability: The performance data for the Accu-Chek Active bGM system was calibrated using venous blood containing various glucose concentrations. Reference values are obtained using the hexokinase method, which is calibrated using the ID-GCMS method.

Accuracy performance :

The Accu-Chek Active bGM system meets the DIN EN ISO 15197:2013 requirements (data on file, 2014).
